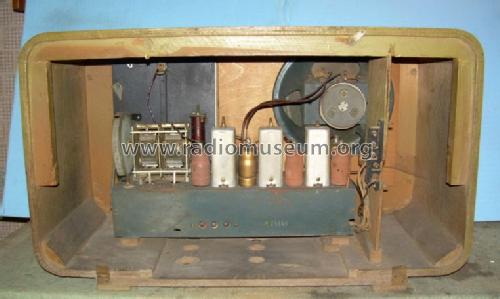

Rodina {Родина} ; Voronezh (ID = 305319) Radio Rodina {Родина} ; Voronezh (ID = 305320) Radio

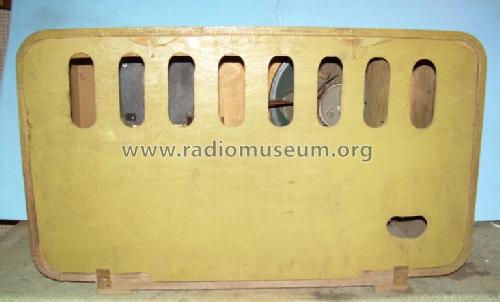

Rodina {Родина} ; Voronezh (ID = 305321) Radio Rodina {Родина} ; Voronezh (ID = 933285) Radio
Use red slider bar for more.
Rodina {Родина} ; Voronezh (ID = 105126) Radio
Voronezh: Rodina {Родина} [Radio] ID = 105126 589x466
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rodina {Родина}, Voronezh Elektrosignal Radio Works:
Kaunas, Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Voronezh Elektrosignal Radio Works
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: СБ-242 2К2М 2К2М 2Ж2М 2Ж2М 2Ж2М
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 120/2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Rodina {Родина} - Voronezh Elektrosignal Radio
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 320 x 260 mm / 18.9 x 12.6 x 10.2 inch
Notes First tube battery radio in USSR after WW2. Possible two type dry battery variants, inside or outside radio set. This radio analog - same manufacturer battery radio, see "Elektrosignal".
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Mentioned in E.A.Levitin "Spravocnik po radiovesciatelnym prijomnikam" Moscow 1960
Literature/Schematics (1) Past Soviet Union magazine RADIO Nr.01 - 1946, Nr.12 - 1949

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Voronezh Elektrosignal Radio Works
Here you find 30 models, 28 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
