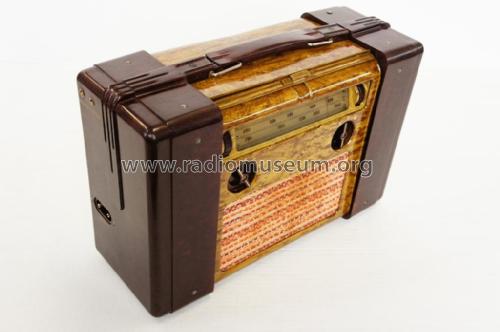

For model Voronež {Воронеж} tubes-portable, Voronezh Elektrosignal Radio Works:
Thanks for Valery Charcenko, Russia

Country:  Soviet Union
Manufacturer / Brand:  Voronezh Elektrosignal Radio Works
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1А1П 1К1П 1К1П 1Б1П 2П1П 6С2С
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Voronež {Воронеж} [tubes-portable] - Voronezh Elektrosignal Radio
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Notes First portable battery supply tube radio in Russia. Produced small experimental series about 200 sets.
Mentioned in -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
