• Country
• Germany

• Manufacturer / Brand
• Vorrichtungen Dessau, VEB (Ostd.) (D)

• Year
• 1958

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 122757

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Drehkondensatoren-Baukasten M 00-01 - Vorrichtungen Dessau, VEB Ostd

• Dimensions (WHD)
• 230 x 36 x 170 mm / 9.1 x 1.4 x 6.7 inch

• Notes

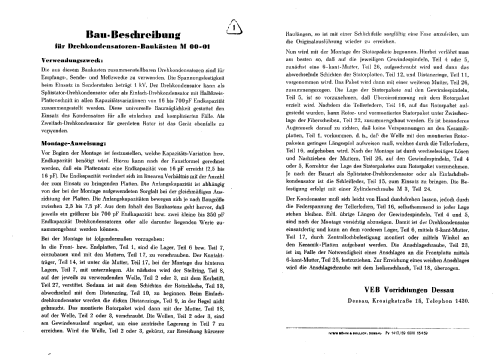

• Mit Bauanleitung für etwa 10 verschiedene Bauvarianten von Drehkondensatoren von 16 bis 700 pF, 1000 V Spannungsfestigkeit.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
