- Country
- France
- Manufacturer / Brand
- Voxazur (marque), Culmen-Radio, Louis Compain & Cie; Paris
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250411
Aus Firmenprospekt 1932/33
Firmenprospekt/Depliant Voxazur 1932/33
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

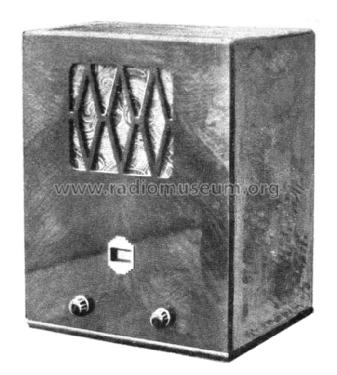

- Model: 338 - Voxazur marque, Culmen-Radio,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 420 x 520 x 300 mm / 16.5 x 20.5 x 11.8 inch
- Notes
-
Superhétérodyne à 6 lampes (1 HF écran a pente variable, 1 changeuse de fréquence à écran, 1 MF à pente variable, 1 détectrice à écran, 1 BF, 1 valve). Gammes de réception PO de 200 à 580 m et GO de 1000 à 2000 m. Contrôle de tonalité.
- Price in first year of sale
- 2,295.00 FRF
- Mentioned in
- -- Original prospect or advert (Prospectus Voxazur 1932/33)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
- Other Models
-
Here you find 16 models, 13 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Voxazur (marque), Culmen-Radio, Louis Compain & Cie; Paris
