• Country
• United States of America (USA)

• Manufacturer / Brand
• Walgreen Co., Aetna Radio Corp.; Chicago (IL)

• Year
• 1939 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140691

• • Brand: Aetna

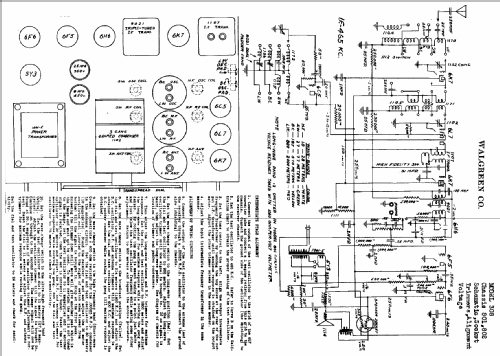

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6C5 6L7 6K7 6H6 6F5 6F6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 308 Ch= 802 - Walgreen Co., Aetna Radio Corp

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Literature/Schematics (1)
• Riders 10-7

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
