Cassette Car Stereo with Tuner W300

Cassette Car Stereo with Tuner W300; Waltham S.A., Genf (ID = 1957411) Car Radio

Cassette Car Stereo with Tuner W300; Waltham S.A., Genf (ID = 1957412) Car Radio
Use red slider bar for more.
Cassette Car Stereo with Tuner W300; Waltham S.A., Genf (ID = 1957411) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Switzerland
Manufacturer / Brand:  Waltham S.A., Genf
Brand

Waltham
Year: 1985 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Cassette Car Stereo with Tuner W300 - Waltham S.A., Genf
Material Metal case
Shape Chassis only or for «building in»
Notes

7 transistors, 7 ICs.

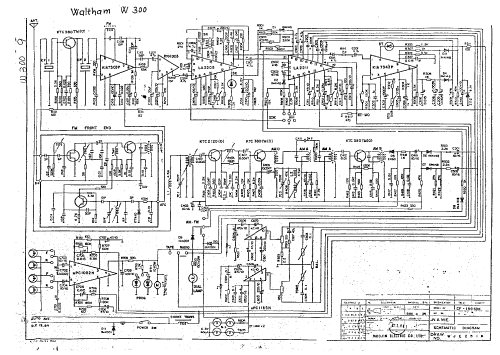

Mentioned in -- Schematic

Model page created by a member from SK. See "Data change" for further contributors.
