Tele Star 4004

Tele Star 4004; Waltham S.A., Genf (ID = 623739) Television Tele Star 4004; Waltham S.A., Genf (ID = 623747) Television
Tele Star 4004; Waltham S.A., Genf (ID = 623742) Television Tele Star 4004; Waltham S.A., Genf (ID = 623741) Television
Tele Star 4004; Waltham S.A., Genf (ID = 623743) Television Tele Star 4004; Waltham S.A., Genf (ID = 623745) Television
Tele Star 4004; Waltham S.A., Genf (ID = 623746) Television Tele Star 4004; Waltham S.A., Genf (ID = 623748) Television
Tele Star 4004; Waltham S.A., Genf (ID = 757015) Television Tele Star 4004; Waltham S.A., Genf (ID = 757016) Television
Use red slider bar for more.

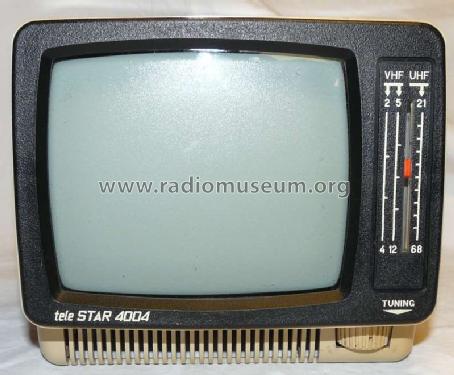

Tele Star 4004; Waltham S.A., Genf (ID = 623739) Television
Waltham S.A., Genf: Tele Star 4004 [Television] ID = 623739 800x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tele Star 4004, Waltham S.A., Genf

Country:  Switzerland
Manufacturer / Brand:  Waltham S.A., Genf
Brand

Waltham
Year: 1987 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 16ЛК8Б
Semiconductors (the count is only for transistors) 26:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220; 12 Volt
Loudspeaker 2 Loudspeakers / Ø 6 cm = 2.4 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Tele Star 4004 - Waltham S.A., Genf
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 180 x 160 x 205 mm / 7.1 x 6.3 x 8.1 inch
Notes Hergestellt in der UDSSR, 16cm Bilddiagonale.
Band VHF (Kanal 2-4+5-12), UHF (Kanal 21-68) , 2 IC´s
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Michael Schott. See "Data change" for further contributors.
