W207

W207; Waltham S.A., Genf (ID = 1154655) Radio W207; Waltham S.A., Genf (ID = 1154656) Radio

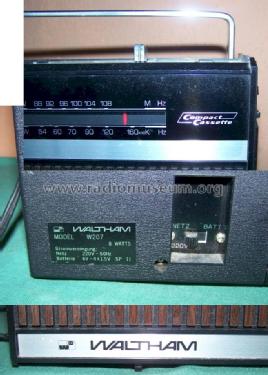

W207; Waltham S.A., Genf (ID = 1154657) Radio W207; Waltham S.A., Genf (ID = 1154658) Radio
Use red slider bar for more.
W207; Waltham S.A., Genf (ID = 1154655) Radio
Waltham S.A., Genf: W207 [Radio] ID = 1154655 476x426
Select picture or schematic to display from thumbnails on the right and click for download.
For model W207, Waltham S.A., Genf:
Ebay user stoffmotte 110813682332

Country:  Switzerland
Manufacturer / Brand:  Waltham S.A., Genf
Brand

Waltham
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 117; 220 / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: W207 - Waltham S.A., Genf
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 76 x 295 mm / 9.8 x 3 x 11.6 inch
Notes Mono-Kassettenrekorder; Übertragungsbereich: 150...6300 Hz; Mikrofon und Plattenspielereingang; UKW-Bereich 88...108 MHz (kein OIRT-UKW-Band); Export in die Tschechoslowakei.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Source of data Magnetofony 3, 1976-1981, Bozdech J.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
