Standard Music Centre STM10

ID = 292184

{gbW: "1200", gbH: "980", mW: "459.0", mH: "375", kb: "167 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1200", gbH: "965", mW: "466.0", mH: "375", kb: "166 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1200", gbH: "1007", mW: "446.0", mH: "375", kb: "158 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1200", gbH: "846", mW: "500", mH: "352.0", kb: "164 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1280", gbH: "700", mW: "500", mH: "273.0", kb: "217 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1280", gbH: "1131", mW: "424.0", mH: "375", kb: "255 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1280", gbH: "839", mW: "500", mH: "327.0", kb: "163 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"} {gbW: "1000", gbH: "1431", mW: "262.0", mH: "375", kb: "185 KB", notes: "For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:[br]photo with permission of owner", title: "Waltham Electronics, Standard Music Centre STM10 uploaded by RM Member 14233 (2)", ite: "2"}

Use red slider bar for more.

Standard Music Centre STM10; Waltham Electronics, (ID = 2126713) Radio

Waltham Electronics,: Standard Music Centre STM10 [Radio] ID = 2126713 1200x980

Select picture or schematic to display from thumbnails on the right and click for download.

For model Standard Music Centre STM10, Waltham Electronics, Standard (Ireland) Ltd.; Dublin:
photo with permission of owner

Country:

Ireland

Manufacturer / Brand:

Waltham Electronics, Standard (Ireland) Ltd.; Dublin

Year: 1970 ??

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

Semiconductors present.

Main principle	Super-Heterodyne (Super in general)
Wave bands	Broadcast, Long Wave and FM or UHF.
Details	Changer (Record changer)
Power type and voltage	Alternating Current supply (AC) / 220-240 Volt
Loudspeaker	- This model requires external speaker(s).
Power out
from Radiomuseum.org	Model: Standard Music Centre STM10 - Waltham Electronics, Standard
Material	Wooden case
Dimensions (WHD)	394 x 130 x 400 mm / 15.5 x 5.1 x 15.7 inch

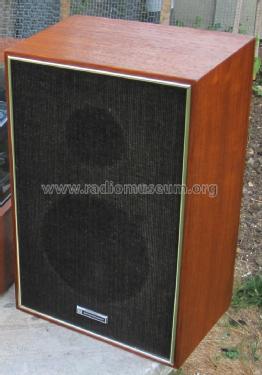

Notes	Fitted with BSR record changer, matching speakers fitted with single 6 inch full range driver. Dimensions quoted above are the base unit only, overall dimensions with lid are as follows; Music centre W 394, H 232, D400 mm Speaker W 227, H 353, D 154 mm Made in Republic of Ireland

Model page created by Mike Edwards. See "Data change" for further contributors.

All listed radios etc. from Waltham Electronics, Standard (Ireland) Ltd.; Dublin
Here you find 8 models, 8 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
