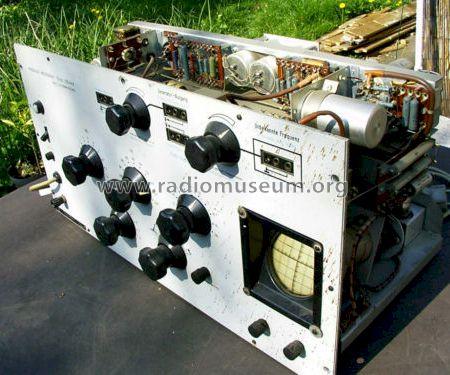

Frequenz-Messgerät 10 Hz - 100 kHz FM 35 9 Röhren

Wandel & Goltermann; Reutlingen

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 196650
    • alternative name: Wago Wandel & Goltermann

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Frequenz-Messgerät 10 Hz - 100 kHz FM 35 [9 Röhren] - Wandel & Goltermann;
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 530 x 270 x 0 mm / 20.9 x 10.6 x 0 inch
  • Notes

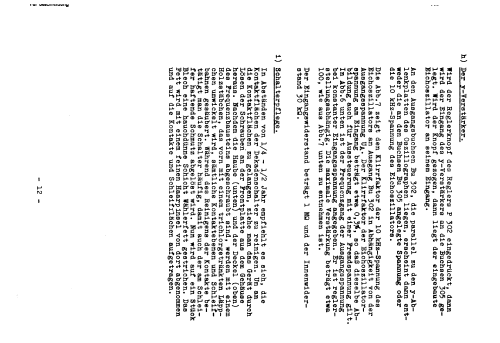

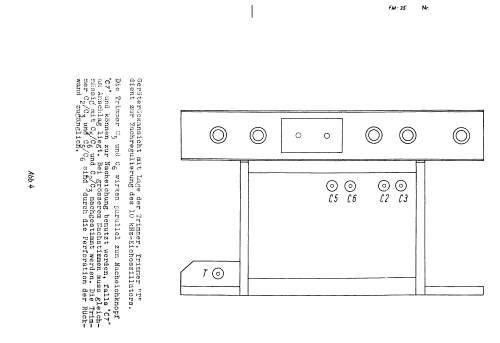

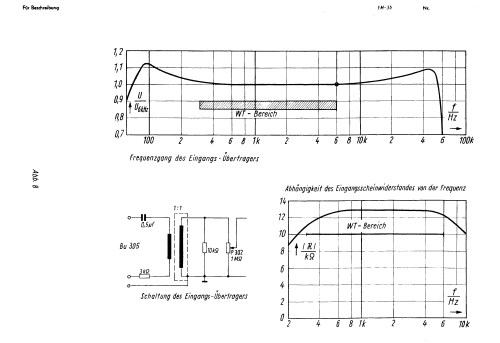

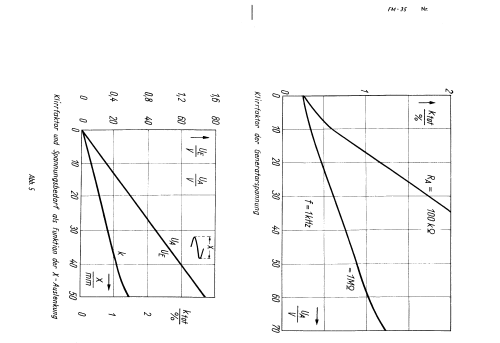

  • Wandel & Goltermann Frequenz-Messgerät 10 Hz - 100 kHz, (unbestätigte Type: >FM 35<);
    Eingebaute Oszilloskopröhre, Einschubgehäuse.

    Die zu dieser Version gehörende Röhrenbestückung lautet:

    • Wienbrücke: E80F E80L E80L
    • Spannunsgversorgung: E80F 85A2 E80L
    • Oszillsokop / Sichtgerät: E80L E83F DG7-31
    • Referenz Generator: EBF80.

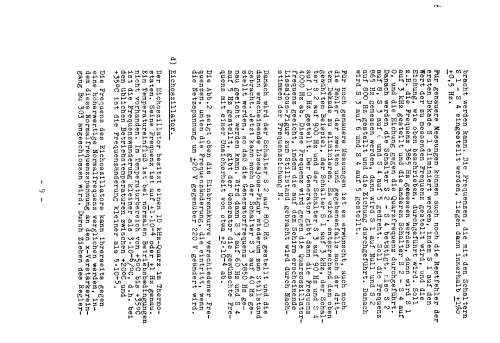

    QK M19 Schwingquarz 10kHz.

  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
