• Country
• Germany

• Manufacturer / Brand
• Wandel & Goltermann; Reutlingen

• Year
• 1962 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 165600

• • alternative name: Wago Wandel & Goltermann

• Number of Tubes
• 13

• Valves / Tubes
• 18042 18042 18042 18042 18042 18042 18042 18042 18042 18042 18042 18042 18042 85A2

• Main principle
• none

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

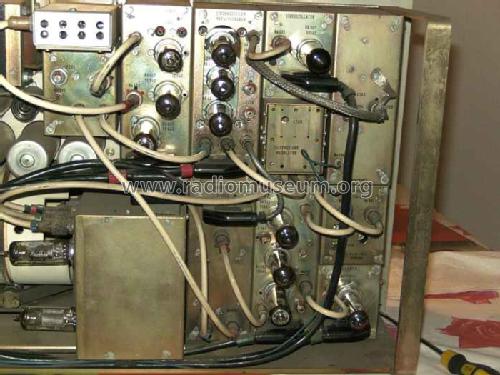

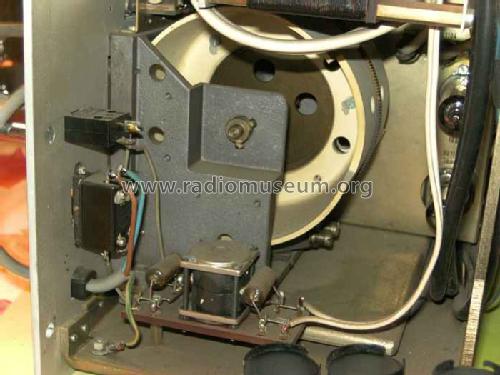

• Model: Selektiver Pegelmesser TFPM-76 - Wandel & Goltermann;

• Dimensions (WHD)
• 800 x 500 x 280 mm / 31.5 x 19.7 x 11 inch

• Notes
• W&G Selektiver Pegelmesser TFPM-76, Messbereich: 0,3-1350 kHz.
  Anzeige in Neper, Referenzspannung: 0,775V.

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Author
• Model page created by Tobias Münzing. See "Data change" for further contributors.
