• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Wangine Electronics Co., Ltd.; Taipei

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256680

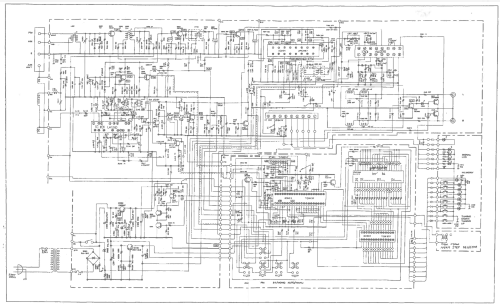

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM-FM Quartz Synthesizer Tuner WQT - 220 - Wangine Electronics Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 423 x 80 x 325 mm / 16.7 x 3.1 x 12.8 inch

• Notes

• Rundfunk-Empfänger, AM-FM Quartz-Synthesizer Tuner WQT-220 Wangine, Taipei.

  UKW und Mittelwellen Rundfunk-Empfänger, AM-FM Tuner mit 4 stelliger grüner Led-Anzeige, 7 Segment und 6 Stationstasten. Sendersuchlauf automatisch/manuell mit manueller Speicherung, Quarz-Synthesizer, PLL-System.

• Author
• Model page created by Reinhard Keins. See "Data change" for further contributors.

• Other Models

• Here you find 20 models, 13 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wangine Electronics Co., Ltd.; Taipei
