Stereo Graphic Equalizer WEQ-120

Stereo Graphic Equalizer WEQ-120; Wangine Electronics (ID = 1848548) Ampl/Mixer
Stereo Graphic Equalizer WEQ-120; Wangine Electronics (ID = 1848549) Ampl/Mixer Stereo Graphic Equalizer WEQ-120; Wangine Electronics (ID = 1848550) Ampl/Mixer
Stereo Graphic Equalizer WEQ-120; Wangine Electronics (ID = 1738821) Ampl/Mixer Stereo Graphic Equalizer WEQ-120; Wangine Electronics (ID = 1848551) Ampl/Mixer
Use red slider bar for more.
Stereo Graphic Equalizer WEQ-120; Wangine Electronics (ID = 1848549) Ampl/Mixer
Wangine Electronics: Stereo Graphic Equalizer WEQ-120 [Ampl/Mixer] ID = 1848549 1400x504
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Graphic Equalizer WEQ-120, Wangine Electronics Co., Ltd.; Taipei:
Instruction Manual

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Wangine Electronics Co., Ltd.; Taipei
Year: 1984 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Graphic Equalizer WEQ-120 - Wangine Electronics Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 422 x 75 x 310 mm / 16.6 x 3 x 12.2 inch
Notes

Wangine Stereo Graphic Equalizer mit Spectrum-Analyzer Model WEQ-120.
2 x 8 Band (80, 160, 315, 630, 1250, 2500, 5000, 10000 Hz)
5 - 100.000 Hz, Klirrfaktor 0,009%
2 Eingänge 150mV/50kOhm
Ausgang 150mV/50kOhm.
Tape Monitor, Defeat
Power Consumption 13 Watts.
Front Champagner-Metallic.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Price in first year of sale 369.00 DM

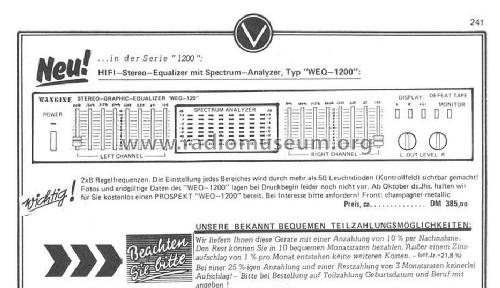

Mentioned in Völkner Electronic Sonderliste 1/84 Seite 171

Model page created by Franz Scharner. See "Data change" for further contributors.
