Bantam Ampico B1

Bantam Ampico B1; Ware Mfg. (ID = 491273) Radio
Bantam Ampico B1; Ware Mfg. (ID = 1034197) Radio Bantam Ampico B1; Ware Mfg. (ID = 792928) Radio

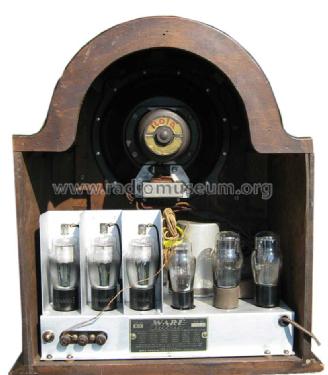

Bantam Ampico B1; Ware Mfg. (ID = 792927) Radio Bantam Ampico B1; Ware Mfg. (ID = 792925) Radio

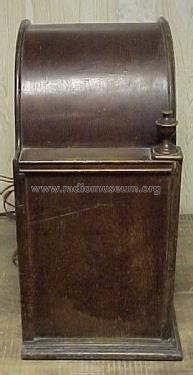

Bantam Ampico B1; Ware Mfg. (ID = 1034198) Radio Bantam Ampico B1; Ware Mfg. (ID = 1034200) Radio
Bantam Ampico B1; Ware Mfg. (ID = 1034202) Radio Bantam Ampico B1; Ware Mfg. (ID = 1034203) Radio
Bantam Ampico B1; Ware Mfg. (ID = 1034206) Radio Bantam Ampico B1; Ware Mfg. (ID = 1034210) Radio
Use red slider bar for more.
Bantam Ampico B1; Ware Mfg. (ID = 1034197) Radio
Ware Mfg.: Bantam Ampico B1 [Radio] ID = 1034197 933x1082
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bantam Ampico B1, Ware Mfg. Corporation (Ware Radio Corp.); New York NY:
Ebay Item number: 350481934716

Country:  United States of America (USA)
Manufacturer / Brand:  Ware Mfg. Corporation (Ware Radio Corp.); New York NY
Brand

Music Master
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6:
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: Bantam Ampico B1 - Ware Mfg. Corporation Ware
Material Wooden case
Shape Chassis only or for «building in»
Notes One dial (primary tuning control knob)
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Machine Age to Jet Age II (page 357.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 274.)


All listed radios etc. from Ware Mfg. Corporation (Ware Radio Corp.); New York NY
Here you find 28 models, 12 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
