• Country
• United States of America (USA)

• Manufacturer / Brand
• Ware Mfg. Corporation (Ware Radio Corp.); New York NY

• Year
• 1922/1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196540

• • Brand: Music Master

• Number of Tubes
• 4

• Valves / Tubes
• UV201 UV201 UV201 UV201

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

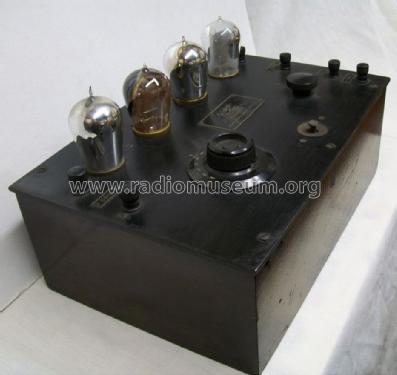

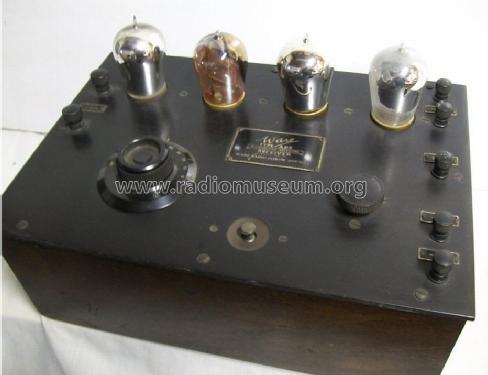

• Model: RF Amplifier-Detector Receiver Type AD2 - Ware Mfg. Corporation Ware

• Shape
• Tablemodel, with any shape - general.

• Notes

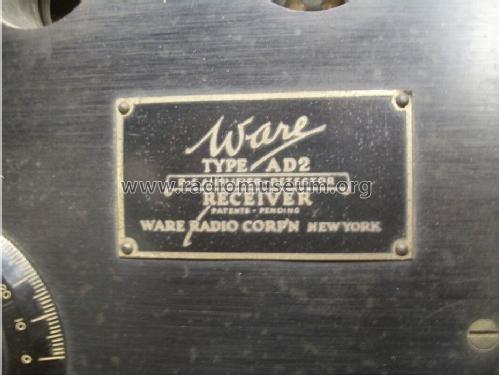

• Ware Type AD2 R-F Amplifier-Detector Receiver. This set used a loop antenna.

• Price in first year of sale
• 110.00 $

• Literature/Schematics (1)

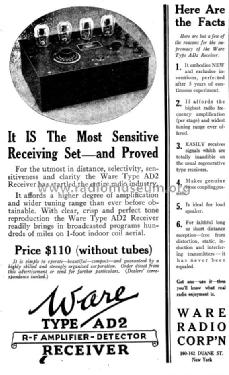

• December 1922 Radio News advertisement. page 1122

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
