Compreamp 359

Compreamp 359; Waters Inc.; Wayland (ID = 604787) Ampl/Mixer
Use red slider bar for more.
Compreamp 359; Waters Inc.; Wayland (ID = 604787) Ampl/Mixer

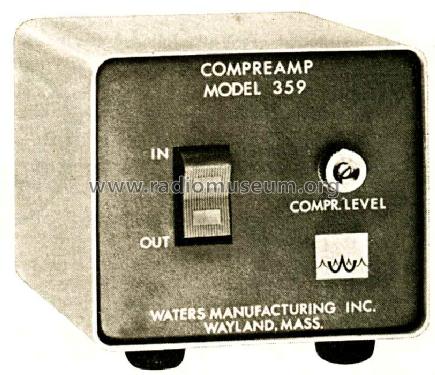

Waters Inc.; Wayland: Compreamp 359 [Ampl/Mixer] ID = 604787 813x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compreamp 359, Waters Inc.; Wayland (MA):
Quelle: Bauer-Katalog, 1968.

Country:  United States of America (USA)
Manufacturer / Brand:  Waters Inc.; Wayland (MA)
Year: 1968 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 2:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compreamp 359 - Waters Inc.; Wayland MA
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 115 x 75 x 70 mm / 4.5 x 3 x 2.8 inch
Notes Compreamp Model 359
Input: 100 kOhm, level: 0,005-0,02V
Output: 50 kOhm
Amplification: 10dB
Preis in D: 135,-- DM.
Literature/Schematics (1) Bauer-Katalog, Bamberg, 1968

Model page created by a member from D. See "Data change" for further contributors.
