Bijouphone No.1 early Vertical Detector

Bijouphone No.1 early; Wates Bros., London (ID = 1578011) Crystal Bijouphone No.1 early; Wates Bros., London (ID = 2484047) Crystal
Bijouphone No.1 early; Wates Bros., London (ID = 2484048) Crystal Bijouphone No.1 early; Wates Bros., London (ID = 2484049) Crystal
Bijouphone No.1 early; Wates Bros., London (ID = 2484050) Crystal Bijouphone No.1 early; Wates Bros., London (ID = 2484051) Crystal
Bijouphone No.1 early; Wates Bros., London (ID = 2484052) Crystal
Use red slider bar for more.
Bijouphone No.1 early; Wates Bros., London (ID = 1578011) Crystal
Wates Bros., London: Bijouphone No.1 early [Crystal] ID = 1578011 789x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bijouphone No.1 early Vertical Detector, Wates Bros., London:
by courtesy of Ian L.Sanders from Tickling the Crystal vol.2

Country:  Great Britain (UK)
Manufacturer / Brand:  Wates Bros., London
Year: 1923 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Bijouphone No.1 early [Vertical Detector] - Wates Bros., London
Material Various materials
Shape Miscellaneous shapes - described under notes.
Notes

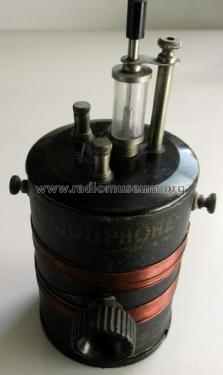

vertical detector; tuning variometer; BBC/PMG stamp, GPO No.4216;

Collectors' prices
Mentioned in Tickling the Crystal; Sanders (vol.2; p.120)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
