• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Electric (Electrical) Co. (Teletalk); Racine (WI)

• Year
• 1950 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 134468

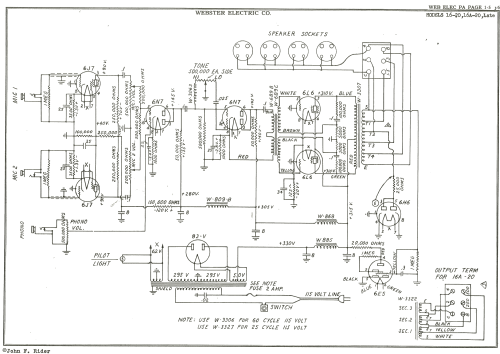

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6J7 6J7 6SN7 6SN7 6E5 6L6 6L6 6H6 5V4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 16A-20 - Webster Electric Electrical Co

• Shape
• Tablemodel, with any shape - general.

• Notes
• PA amp, with 2 mic inputs and magic eye.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
