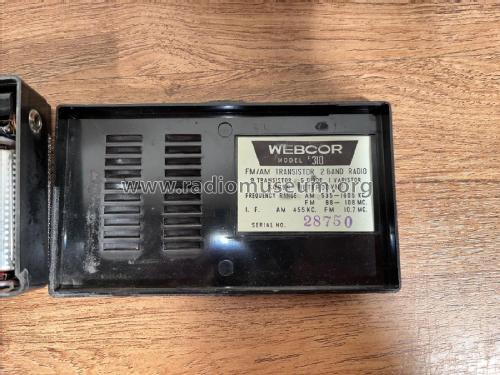

9 Transistors FM/AM 2 Band E-310 (310)
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 341012
-
- Brand: Webcor
ebay.com_380214124378 seller ivgotthat
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 9 Transistors FM/AM 2 Band E-310 - Webster Co., The, Webster-
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Note that the Bunis reference is for model 310 and indicates 10 transistors and a date of 1961.
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 298 (for model 310))
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 597, Folder 14, October 1962 (for model 310))
- Author
- Model page created by Aldo Andreani. See "Data change" for further contributors.
