Holiday F-124-1

Holiday F-124-1; Webster Co., The, (ID = 2407517) R-Player Holiday F-124-1; Webster Co., The, (ID = 2407511) R-Player
Holiday F-124-1; Webster Co., The, (ID = 2407512) R-Player Holiday F-124-1; Webster Co., The, (ID = 2407513) R-Player
Holiday F-124-1; Webster Co., The, (ID = 2407514) R-Player Holiday F-124-1; Webster Co., The, (ID = 2407516) R-Player
Holiday F-124-1; Webster Co., The, (ID = 2407518) R-Player Holiday F-124-1; Webster Co., The, (ID = 2407520) R-Player
Use red slider bar for more.
Holiday F-124-1; Webster Co., The, (ID = 2407517) R-Player
Webster Co., The,: Holiday F-124-1 [R-Player] ID = 2407517 1050x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Holiday F-124-1, Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
Brand

Webcor
Year: 1953 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: 12SQ7 50L6 35Z5
Main principle Audio-Amplification
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Holiday F-124-1 - Webster Co., The, Webster-
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 9 x 19 x 14 inch / 229 x 483 x 356 mm
Notes

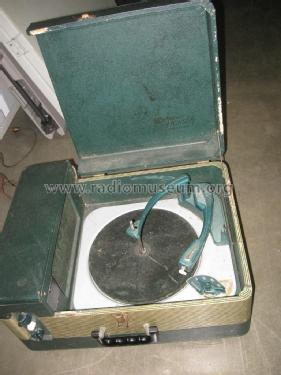

This portable phonograph was available in various colors. The model F124-1 was a green color and the model B-124-1 was a red color. The cabinet was made of wood with a cloth type covering. The record changer has 3 speeds: 33, 45, and 78 RPM. There are 2 controls: one is for volume and the other is for on/off/tone.

According to Howard Sams Photofacts a 12SJ7 tube was sometimes substituted for the 12SQ7 tube.

This model is very similar to the Webcor model B-1024-1.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 203, Folder 16)

Model page created by Jon Kummer. See "Data change" for further contributors.
