Webcor MC-1069-1 Ch= 14X327-2
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1960 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 137572
-
- Brand: Webcor

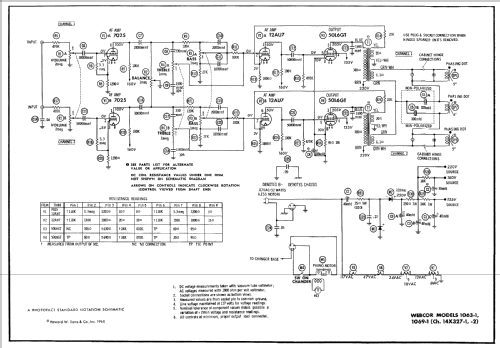

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: Webcor MC-1069-1 Ch= 14X327-2 - Webster Co., The, Webster-
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Webster-Chicago Webcor MC-1069-1 is a portable AC operated 4-tube stereo amplifier with 4-speed automatic record changer.
Diode rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-60, Set 511, Folder 15)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
