• Year
  • 1934
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 65360
    • Brand: Webcor

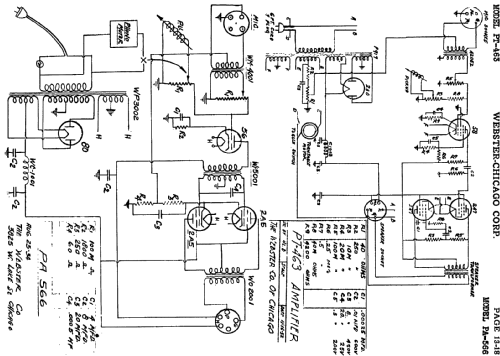

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: PA-566 - Webster Co., The, Webster-
  • Notes
  • Microphone input; push-pull af output stage.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 13 = 1942 and before
