Webcor 1864 Ch= 14X263
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 165517
-
- Brand: Webcor

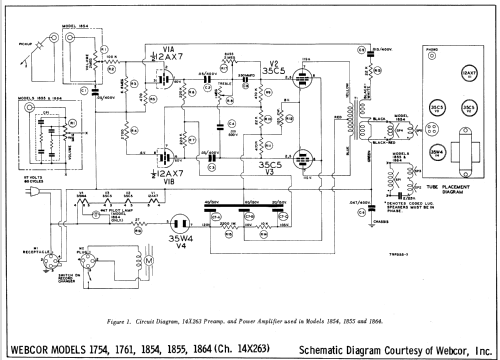

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: Webcor 1864 Ch= 14X263 - Webster Co., The, Webster-
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Servicer)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
