Webcor BC-1998-1 Ch= 14X285-2 Ch= 14X290-1 Ch= 73X015-1

Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145785
    • Brand: Webcor

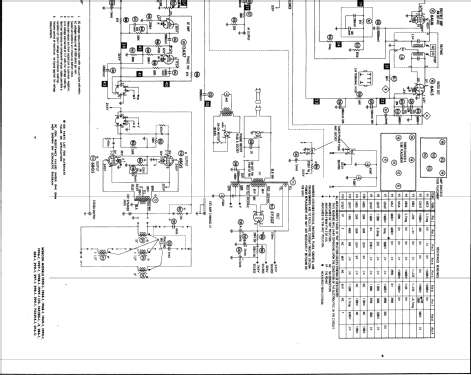

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: Webcor BC-1998-1 Ch= 14X285-2 Ch= 14X290-1 [Ch= 73X015-1] - Webster Co., The, Webster-
  • Notes
  • AC operated preamp - amplifier with AM - FM tuner and 4 speed automatic record changer. Sams photofact set 475 folder 17 date 2-60 features the Webcor models BC-1959-1, EC-1959-1, MC-1959-1, WC1959-1 with preamp chassis 14X285-1 and amp chassis 14X288-1, the models BC-1965-1, CC-1965-1, MC-1965-1 with preamp chassis 14X298-1 and amp chassis 14X297-1, the models BC-1968-1, WC-1968-1, MC-1969-1, PC-1969-1 with preamp chassis 14X285-1 and amp chassis 14X286-1, the models BC-1992-1, WC-1992-1 with preamp chassis 14X285-2, amp chassis 14X299-1 and tuner chassis 73X016-1, the models EC-1996-1, MC-1996-1, PC-1997-1, BC-1998-1, EC-1998-1, MC-1998-1, WC-1998-1 with preamp chassis 14X285-2, amp chassis 14X290-1 and tuner chassis 73X015-1, the models MC-1999-1, PC-1999-1 with preamp chassis 14X285-2, amp chassis 14X299-1 and tuner chassis 73X016-1 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
