Webcor Electronic Memory 210

Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Year
1952 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
84698

- Brand: Webcor

Schematics

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019933) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019934) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019935) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019936) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019937) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019938) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019939) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019940) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019941) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019942) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019943) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019944) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 157039) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)
Beitman

Webcor Electronic Memory 210; Webster Co., The, (ID = 691085) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752067) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752069) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752070) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752071) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752072) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752073) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752074) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752075) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752076) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752077) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752078) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752080) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752081) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752082) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752083) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1752084) R-Player — Webster Co., The, Webcor Electronic Memory 210 (3)

Webcor Electronic Memory 210; Webster Co., The, (ID = 140166) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 979866) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 979867) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 979868) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 979869) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1112596) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1112906) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1269770) R-Player — Webster Co., The, Webcor Electronic Memory 210 (2)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1269771) R-Player — Webster Co., The, Webcor Electronic Memory 210 (2)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1269772) R-Player — Webster Co., The, Webcor Electronic Memory 210 (2)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1269774) R-Player — Webster Co., The, Webcor Electronic Memory 210 (2)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1269775) R-Player — Webster Co., The, Webcor Electronic Memory 210 (2)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1763488) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1763501) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1763900) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 1766235) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 2388806) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 2501363) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 2501381) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 2501382) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 2501383) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 2843665) R-Player — Webster Co., The, Webcor Electronic Memory 210 (1)

Webcor Electronic Memory 210; Webster Co., The, (ID = 3019932) R-Player — Webster Co., The, Webcor Electronic Memory 210 (2)

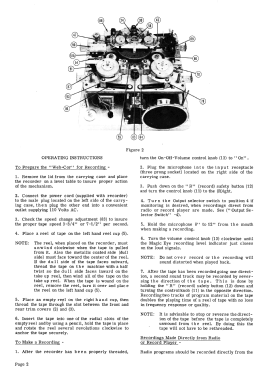

Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
6SC7 6SL7 or 6SC7 6SN7GT 6K6GT 6E5 6X5GT

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Webcor Electronic Memory 210 - Webster Co., The, Webster-

Shape
Tablemodel, with any shape - general.

Notes
The webster-Chicago "Web-Cor" model 210 tape recorder is designed to record two tracks of sound on the standard width (1/4") recording tape. The "Web-Cor" uses two motors and two record-playback heads in conjunction with the tape directional control to permit dual track recordings. This eliminates the operation of turning the reels over rethreading the tape in order to use the second half.
Half track in both directions. Max reel size 7". Tape speeds 3¾" & 7½". Sold in Italy by Televisavox.

Mentioned in
Riparazioni - Scuola Radio Elettra

Literature/Schematics (1)
Beitman Radio Diagrams, Vol. 12, 1952

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 159, folder 17, dated 2-52)
