• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 139956

• • Brand: Webcor

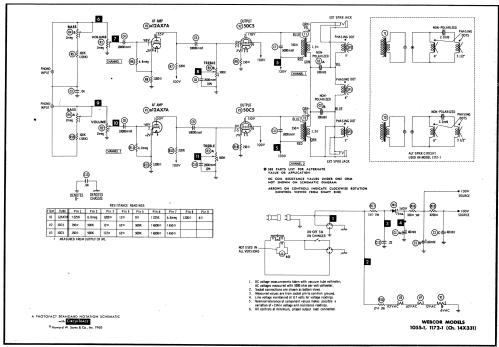

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7A 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Webcor MC-1055-1 Ch= 14X331 - Webster Co., The, Webster-

• Shape

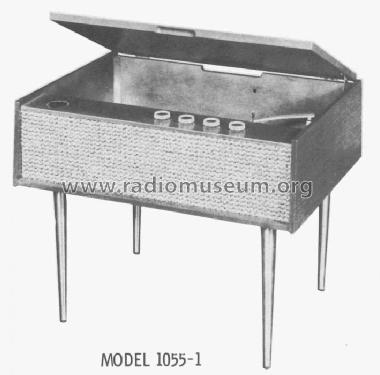

• Console, Highboy (legs > 50 %).

• Notes
• AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 502 folder 17 date 10-60 features the Webster Webcor models BC-1055-1, MC-1055-1, WC-1055-1 and EP-1172-1 as the same schematic.

• Literature/Schematics (1)

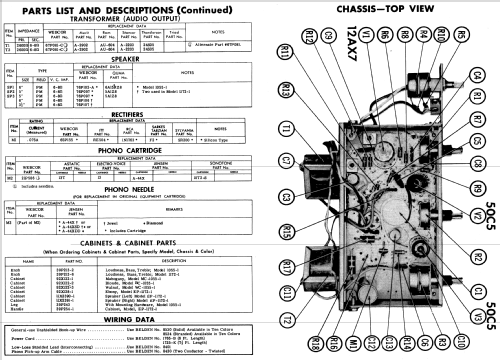

• Photofact Folder, Howard W. SAMS (Set 502 folder 17 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
