Webcor WC4904-1 Ch= 14X296-1
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 144014
-
- Brand: Webcor

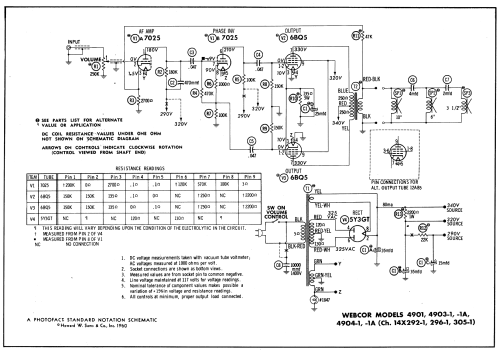

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: Webcor WC4904-1 Ch= 14X296-1 - Webster Co., The, Webster-
- Notes
- AC operated audio amplifier. Sams photofact set 474 folder 20 date 2-60 features the Webcor models BT4901-1, MT4901-1, PT4901-1, WT4901-1 with chassis 14X292-1, the models BC4903-1, EC4903-1, EC4904-1, MC4903-1, MC4904-1, PC4904-1, WC4903-1, WC4904-1 with chassis 14X296-1 and the models BC4903-1A, EC4903-1A, EC4904-1A, MC4903-1A, MC4904-1A, PC4904-1A, WC4904-1A with chassis 14X305-1 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 474 folder 20 date 2-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
