2-way HiFi Speaker Mini Direct

2-way HiFi Speaker Mini Direct ; Wega, (ID = 2107528) Speaker-P 2-way HiFi Speaker Mini Direct ; Wega, (ID = 2107527) Speaker-P
2-way HiFi Speaker Mini Direct ; Wega, (ID = 2107529) Speaker-P 2-way HiFi Speaker Mini Direct ; Wega, (ID = 2107530) Speaker-P

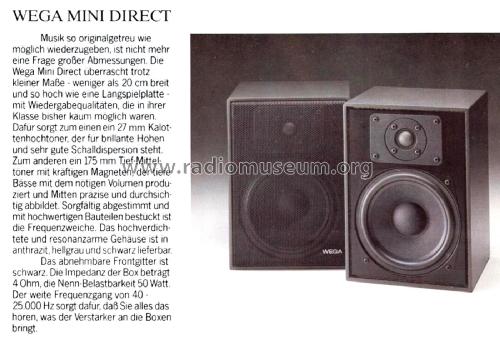

2-way HiFi Speaker Mini Direct ; Wega, (ID = 2236879) Speaker-P
Use red slider bar for more.
2-way HiFi Speaker Mini Direct ; Wega, (ID = 2107528) Speaker-P
Wega,: 2-way HiFi Speaker Mini Direct [Speaker-P] ID = 2107528 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-way HiFi Speaker Mini Direct, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1980 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 50 W (70 W max.)
from Radiomuseum.org Model: 2-way HiFi Speaker Mini Direct - Wega, Württembergische Radio-
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 210 x 290 x 200 mm / 8.3 x 11.4 x 7.9 inch
Notes

Wega 2-Wege-Box in Kleinbauweise, Belastbarkeit 50 W sinus / 70 W Musik

Kalotten-Hochtöner mit 27 mm Durchmesser
Tieftöner mit 131 mm Durchmesser
Übergangsfrequenz der Frequenzweiche 1600 Hz
Impedanz 4-8 Ω

Model page created by Gerhard Wickern. See "Data change" for further contributors.
