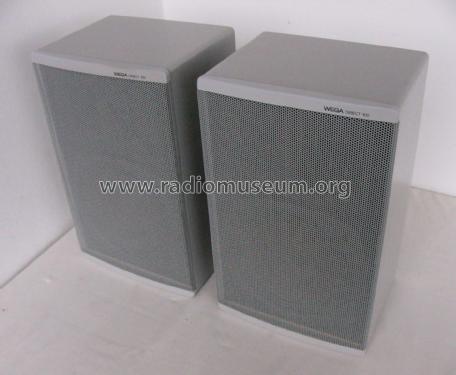

Wega,: 3-Weg-HiFi-Lautsprecherbox direct 100 [Speaker-P] ID = 2216899 1400x1150

Select picture or schematic to display from thumbnails on the right and click for download.

For model 3-Weg-HiFi-Lautsprecherbox direct 100, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:

Germany

Manufacturer / Brand:

Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

alternative name

Württemb. Radio-Ges.mbH; Stuttgart

Year: 1981 ?

Category: Loudspeaker, headphone or earphone

Wave bands	- without
Details
Power type and voltage	No Power needed
Loudspeaker	3 Loudspeakers
Power out	50 W (70 W max.)
from Radiomuseum.org	Model: 3-Weg-HiFi-Lautsprecherbox direct 100 - Wega, Württembergische Radio-
Material	Wooden case
Shape	Book-shelf unit.
Dimensions (WHD)	245 x 400 x 196 mm / 9.6 x 15.7 x 7.7 inch
Notes	Übertragungsbereich 36 Hz - 25 000 Hz nach DIN Impedanz: 4 Ω Durchmesser Tieftöner 200 mm, Konus Durchmesser Mitteltöner 25 mm, Kalotte Durchmesser Hochtöner 19 mm, Kalotte Übergangsfrequenzen der eingebauten Weiche: 1000 Hz und 4200 Hz
Net weight (2.2 lb = 1 kg)	6 kg / 13 lb 3.5 oz (13.216 lb)

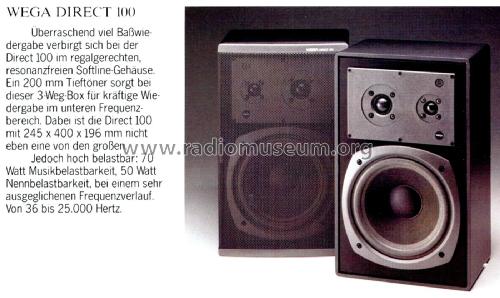

Mentioned in	-- Original prospect or advert

Model page created by Gerhard Wickern. See "Data change" for further contributors.
