3-Weg-HiFi-Lautsprecherbox direct 200

3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 1949273) Speaker-P 3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 1949274) Speaker-P

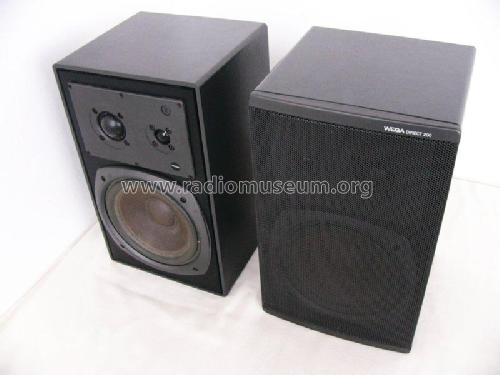

3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 1949275) Speaker-P 3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 1949276) Speaker-P
3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 2236854) Speaker-P 3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 2236921) Speaker-P
Use red slider bar for more.
3-Weg-HiFi-Lautsprecherbox direct 200; Wega, (ID = 1949273) Speaker-P
Wega,: 3-Weg-HiFi-Lautsprecherbox direct 200 [Speaker-P] ID = 1949273 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3-Weg-HiFi-Lautsprecherbox direct 200, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1981 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out 70 W (100 W max.)
from Radiomuseum.org Model: 3-Weg-HiFi-Lautsprecherbox direct 200 - Wega, Württembergische Radio-
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 245 x 400 x 241 mm / 9.6 x 15.7 x 9.5 inch
Notes

Übertragungsbereich 29 Hz - 25 000 Hz nach DIN
Impedanz: 4 Ω

Durchmesser Tieftöner 200 mm, Konus
Durchmesser Mitteltöner 37 mm Kalotte
Durchmesser Hochtöner 19 mm Kalotte

Übergangsfrequenzen der eingebauten Weiche: 1000 Hz und 4600 Hz

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Mentioned in -- Original prospect or advert

Model page created by Gerhard Wickern. See "Data change" for further contributors.
