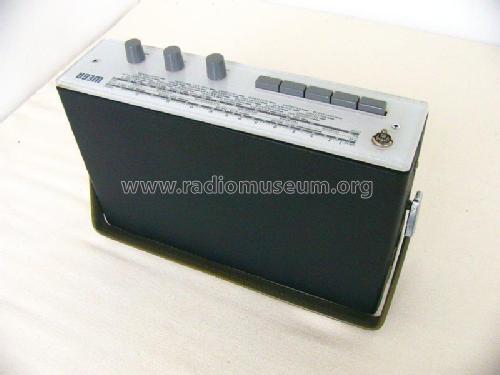

Bobby 40; Wega, (ID = 1831270) Radio Bobby 40; Wega, (ID = 1831271) Radio
Bobby 40; Wega, (ID = 1831272) Radio Bobby 40; Wega, (ID = 2029343) Radio
Use red slider bar for more.
Bobby 40; Wega, (ID = 1192) Radio

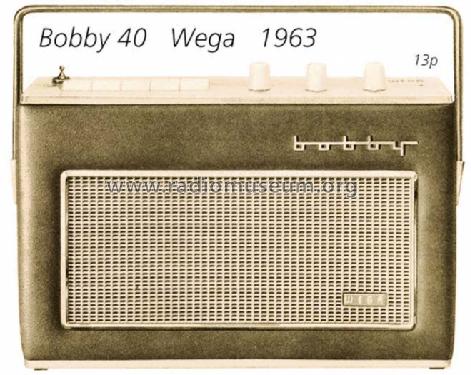

Wega,: Bobby 40 [Radio] ID = 1192 660x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bobby 40, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC615 OC615 OC614 AF105 AF105 AC122 AC122 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Bobby 40 - Wega, Württembergische Radio-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 180 x 80 mm / 11.8 x 7.1 x 3.1 inch
Notes Anschluss für Autoantenne.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 285.00 DM
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
