bobby 42
Use red slider bar for more.

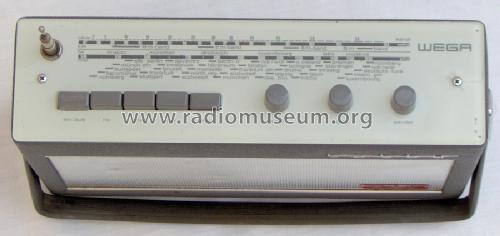

Wega,: bobby 42 [Radio] ID = 2036044 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Württemb. Radio-Ges.mbH; Stuttgart | ||||
|---|---|---|---|---|---|
| Year: 1964/1965 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: OC615 OC615 AF136 AF138 AF137 AC122 AC122 AC128 AC128 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 8 AM circuit(s) 12 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 6 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch |
| Power out | 1 W (unknown quality) |
| from Radiomuseum.org | Model: bobby 42 - Wega, Württembergische Radio- |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 300 x 198 x 85 mm / 11.8 x 7.8 x 3.3 inch |
| Notes | Betrieb im Auto über Autohalterung (32,- DM) möglich. |
| Net weight (2.2 lb = 1 kg) | 2.5 kg / 5 lb 8.1 oz (5.507 lb) |
| Price in first year of sale | 319.00 DM |
| Source of data | Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb |
