C3941

C3941; Wega, (ID = 2182703) R-Player

C3941; Wega, (ID = 2182704) R-Player

C3941; Wega, (ID = 2231426) R-Player

C3941; Wega, (ID = 2231427) R-Player

C3941; Wega, (ID = 2231428) R-Player

C3941; Wega, (ID = 2231429) R-Player

C3941; Wega, (ID = 2231438) R-Player

C3941; Wega, (ID = 2231440) R-Player
C3941; Wega, (ID = 1387575) R-Player C3941; Wega, (ID = 1387573) R-Player
C3941; Wega, (ID = 1387576) R-Player C3941; Wega, (ID = 2230166) R-Player
C3941; Wega, (ID = 2230167) R-Player C3941; Wega, (ID = 482746) R-Player
Use red slider bar for more.
C3941; Wega, (ID = 1387575) R-Player
Wega,: C3941 [R-Player] ID = 1387575 800x600

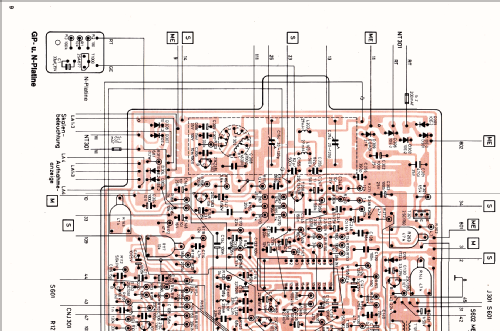

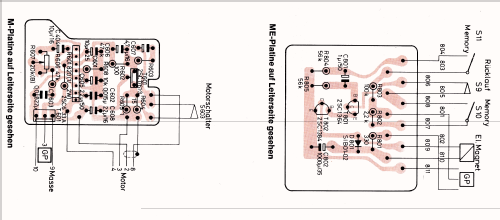

Select picture or schematic to display from thumbnails on the right and click for download.
For model C3941, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1976/1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 23:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: C3941 - Wega, Württembergische Radio-
Shape Book-shelf unit.
Dimensions (WHD) 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch
Notes Wega HiFi-Cassetten-Recorder C3941.
Dolby-Rauschbegrenzung; Limiter; Übertragungsbereich: 30···15000 Hz (mit FeCr-Band).
Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)
Source of data Handbuch VDRG 1976/1977

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
Here you find 658 models, 579 with images and 380 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
