Color 3016

Color 3016; Wega, (ID = 2084737) Television

Color 3016; Wega, (ID = 2084738) Television

Color 3016; Wega, (ID = 2419806) Television

Color 3016; Wega, (ID = 2419807) Television

Color 3016; Wega, (ID = 2419808) Television

Color 3016; Wega, (ID = 2419809) Television

Color 3016; Wega, (ID = 2419810) Television

Color 3016; Wega, (ID = 2419811) Television

Color 3016; Wega, (ID = 2419812) Television

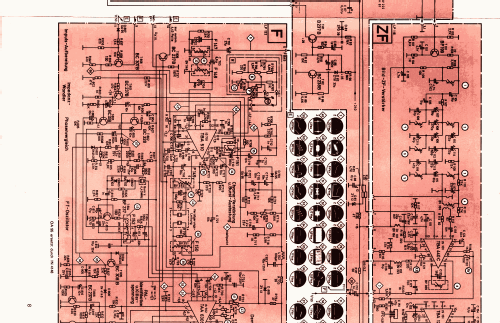

Color 3016; Wega, (ID = 2419813) Television
Color 3016; Wega, (ID = 438825) Television Color 3016; Wega, (ID = 2084736) Television
Color 3016; Wega, (ID = 2084854) Television Color 3016; Wega, (ID = 2084855) Television
Use red slider bar for more.
Color 3016; Wega, (ID = 438825) Television
Wega,: Color 3016 [Television] ID = 438825 517x488
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color 3016, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach:
Weiler Katalog 1973

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1973/1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A66-410X
Semiconductors (the count is only for transistors) 47:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Color 3016 - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 740 x 510 x 460 mm / 29.1 x 20.1 x 18.1 inch
Notes 66 cm Farbfernseh-Tischgerät, 8 IC, 96 Dioden, 3 Thyristoren, VHF/UHF-Tuner, Programmanzeige beleuchtet.
8 Programmtasten mit Berührungselektronik, Anschluss für Zweitlautsprecher.
Gehäuse in Nussbaum oder Weiss. Passendes Untergestell WEGA 706.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Mentioned in -- Original-techn. papers. (Weiler Angebot 1973/74)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
