For model Direct 1, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1978 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Direct 1 - Wega, Württembergische Radio-
Material Wooden case
Dimensions (WHD) 235 x 400 x 175 mm / 9.3 x 15.7 x 6.9 inch

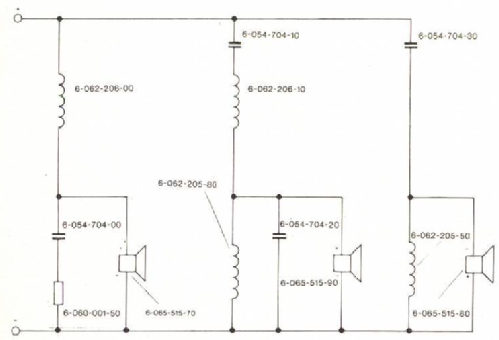

Notes Drei-Wege-Box mit 50 Watt Sinus an 4 Ohm. Übertragungsbereich: 40-25000Hz. Bestückung: 1 Tieftöner 195mm, 1 Kalotten-Mitteltonsystem 30mm und 1 Kalottenhochtonsystem 19mm. Frequenzweiche (Übergänge bei 750Hz und 5500Hz). Gehäuse: Resonanzfreies, hochverdichtetes Holzgehäuse. Farben: Hellgrau, Stahlblau, Anthrazit und Schwarz. Grill: Schwarz.
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
