Farbfernsehgerät Wega-Color 3025
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1975
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 211199
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

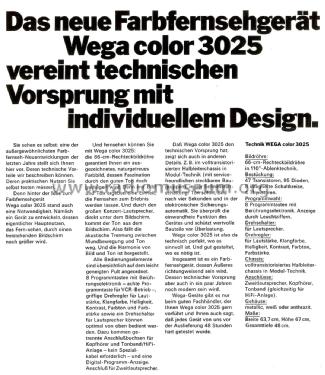

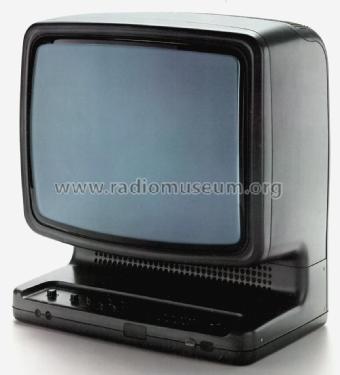

Q: Wega, Katalog '75
Q: Wega, Service-Unterlagen
Q: Wega, Service-Unterlagen
Q: Wega, Katalog '75
Q: Wega, Katalog '75
Scanned vom "Format 57", WEGA, Seite 4.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Farbfernsehgerät Wega-Color 3025 - Wega, Württembergische Radio-
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 637 x 670 x 480 mm / 25.1 x 26.4 x 18.9 inch
- Notes
- Wega Color 3025 mit individuellem Design, 8 Programmtasten mit Berührungselectronic, Modul-Technik, Ausführung metallic, weiß und anthrazit. Verkauf über die Weltfunk anläßlich der Funkausstellung 1975 in Berlin.
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
