FM Stereo / AM Receiver R250SH
Wega,: FM Stereo / AM Receiver R250SH [Radio] ID = 1185098 933x524

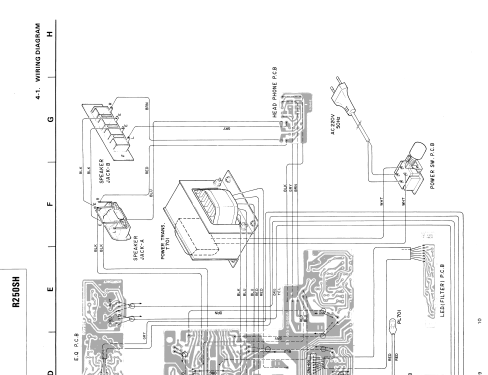

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Württemb. Radio-Ges.mbH; Stuttgart | ||||
|---|---|---|---|---|---|
| Year: 1985 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. HA12016 HA11211 STK463 |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 50 W (unknown quality) |
| from Radiomuseum.org | Model: FM Stereo / AM Receiver R250SH - Wega, Württembergische Radio- |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 430 x 115 x 275 mm / 16.9 x 4.5 x 10.8 inch |
| Notes | Wega FM Stereo / AM Receiver R250SH; Anschlüsse: UKW-Antenne, Phono, Tape (DIN und cinch), Lautsprecher 1 und 2, Kopfhörer. Made in Taiwan. |
| Net weight (2.2 lb = 1 kg) | 6 kg / 13 lb 3.5 oz (13.216 lb) |
| Source of data | - - Data from my own collection |
Model page created by a member from D. See "Data change" for further contributors.
