C 3940-2

C 3940-2; Wega, (ID = 1727305) R-Player C 3940-2; Wega, (ID = 1727308) R-Player
C 3940-2; Wega, (ID = 1727311) R-Player C 3940-2; Wega, (ID = 412845) R-Player
Use red slider bar for more.

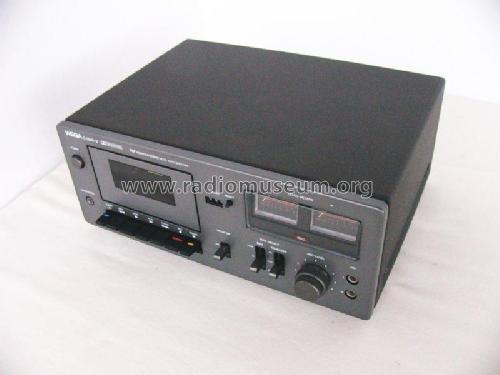

C 3940-2; Wega, (ID = 1727305) R-Player
Wega,: C 3940-2 [R-Player] ID = 1727305 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model C 3940-2, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1977/1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 23:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: C 3940-2 - Wega, Württembergische Radio-
Shape Book-shelf unit.
Dimensions (WHD) 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch
Notes ICs: 2.
HiFi-Stereo-Cassetten-Recorder. Übertragungsbereich mit FeCr-Band: 30···15000 Hz.
Gehäusefarbe: anthrazit oder stahlblau.
Source of data Handbuch VDRG 1977/1978
Literature/Schematics (1) HiFi-Jahrbuch 9; S. 8-132, Verlag G. Braun, Karlsruhe 1978

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
