Grafic Audio Equalizer Modul 42 E

Grafic Audio Equalizer Modul 42 E; Wega, (ID = 1757852) Misc Grafic Audio Equalizer Modul 42 E; Wega, (ID = 1757853) Misc
Grafic Audio Equalizer Modul 42 E; Wega, (ID = 1757854) Misc
Use red slider bar for more.
Grafic Audio Equalizer Modul 42 E; Wega, (ID = 1757852) Misc
Wega,: Grafic Audio Equalizer Modul 42 E [Misc] ID = 1757852 800x600

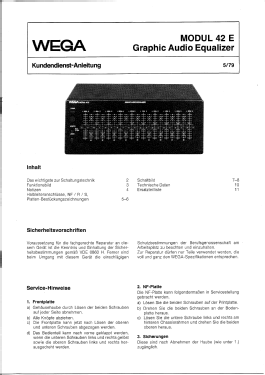

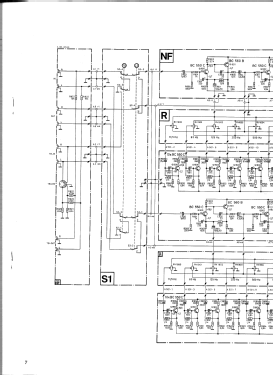

Select picture or schematic to display from thumbnails on the right and click for download.
For model Grafic Audio Equalizer Modul 42 E, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1981 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Grafic Audio Equalizer Modul 42 E - Wega, Württembergische Radio-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch
Notes

Equalizer für das Wega-HiFi-Bausteinsystem Modul 42. Übertragungsbereich 4 - 100 000 Hz, 10 Frequenzbänder

Mentioned in -- Original prospect or advert

Model page created by Gerhard Wickern. See "Data change" for further contributors.
