• Year
  • 1974–1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29392
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 58
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     17 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Various materials
  • from Radiomuseum.org

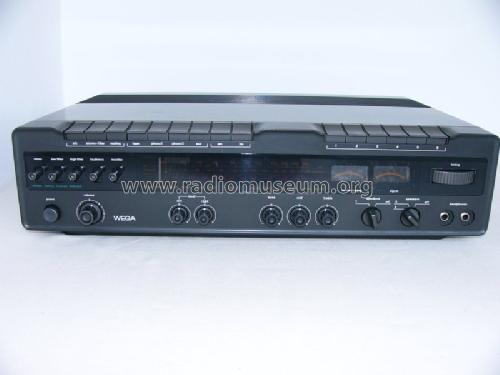

  • Model: hifi 3131 - Wega, Württembergische Radio-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 480 x 120 x 320 mm / 18.9 x 4.7 x 12.6 inch
  • Notes
  • ICs: 10.
    HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 40 W (Sinus); 2 LS-Gruppen. Empfindlichkeitsregler für Audio-Eingänge an Geräteunterseite, einzeln einstellbar.

    Gehäusefront, Kühlkörper und Bodenplatte besteht aus Metall, Korpus aus Kunststoff

  • Net weight (2.2 lb = 1 kg)
  • 14 kg / 30 lb 13.4 oz (30.837 lb)
  • External source of data
  • Erb
