For model 3201 HiFi Nussbaum, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 38:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 3201 HiFi [Nussbaum] - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 730 x 180 x 360 mm / 28.7 x 7.1 x 14.2 inch
Notes HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 20 W (Sinus);
Phono-Chassis = Dual 1015 mit Magnetsystem Shure M71M-G.

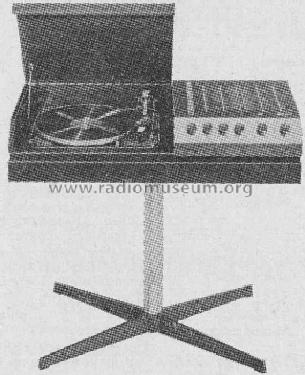

Untergestell gegen Mehrpreis von 80,- DM.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 1'298.00 DM
External source of data erb
Source of data Handbuch VDRG 1968/1969
