• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27180

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

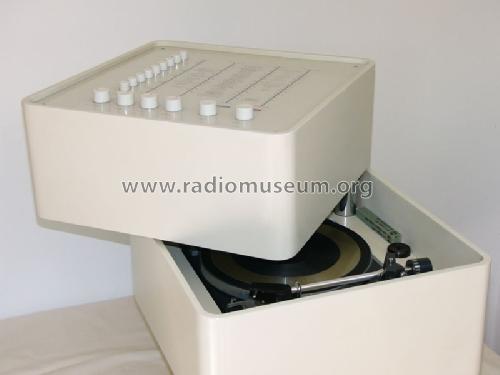

• Model: Stereo-Bar 3300 HiFi 3300-1 - Wega, Württembergische Radio-

• Dimensions (WHD)
• 425 x 615 x 425 mm / 16.7 x 24.2 x 16.7 inch

• Notes
• Wega Stereo-Bar 3300 HiFi-Stereo-Steuergerät.
  NF-Verstärker mit 2 Endstufen je 16 W (Sinus);
  Phono-Chassis = Dual 1019 mit Magnetsystem M75M-G.
  Gehäuse: Palisander oder Schleiflack, schwarz oder weiss.
  Unterscheidungsmerkmale zu den beiden späteren Modellen: Keine Stationstasten. Separate Grundplatte, nicht fahrbar.

• Net weight (2.2 lb = 1 kg)
• 59 kg / 129 lb 15.3 oz (129.956 lb)

• Price in first year of sale
• 1,890.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• Handbuch VDRG 1968/1969 (HiFi Jahrbuch 3, G. Braun Verlag 1967, S. 399)

• Literature/Schematics (1)
• -- Original-techn. papers.
