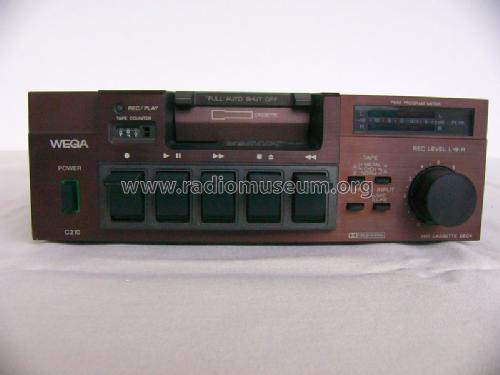

HiFi Cassette Deck C 210

HiFi Cassette Deck C 210; Wega, (ID = 2230490) R-Player
HiFi Cassette Deck C 210; Wega, (ID = 1535395) R-Player HiFi Cassette Deck C 210; Wega, (ID = 1535396) R-Player
HiFi Cassette Deck C 210; Wega, (ID = 1535398) R-Player HiFi Cassette Deck C 210; Wega, (ID = 2230491) R-Player
HiFi Cassette Deck C 210; Wega, (ID = 2230492) R-Player
Use red slider bar for more.
HiFi Cassette Deck C 210; Wega, (ID = 1535395) R-Player
Wega,: HiFi Cassette Deck C 210 [R-Player] ID = 1535395 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Cassette Deck C 210, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1981 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player; Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HiFi Cassette Deck C 210 - Wega, Württembergische Radio-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 210 x 72 x 229 mm / 8.3 x 2.8 x 9 inch
Notes

Kassettengerät der Komponentenanlage Wega Mini Modul 210.
Gerät ist weitgehend baugleich mit Aiwa L 30.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)

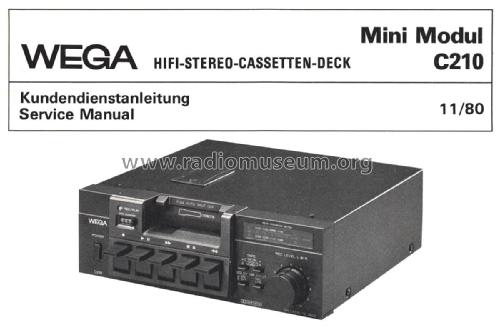

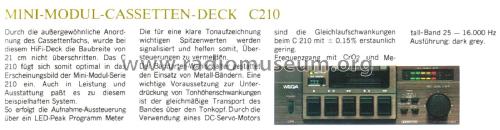

Mentioned in - - Manufacturers Literature

Model page created by Gerhard Wickern. See "Data change" for further contributors.



All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
Here you find 658 models, 580 with images and 379 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
