- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3858
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

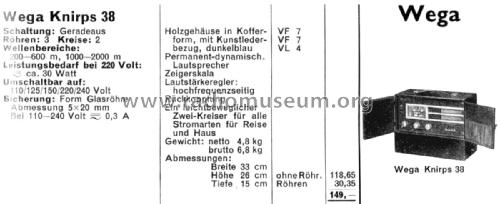

Q: Wega, Produktwerbung 1938
Wega Print Ad 1938

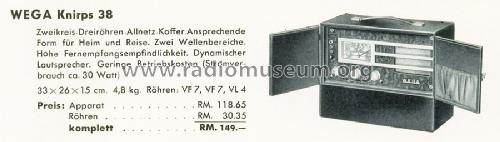

Q: Handbuch RF-Großhandel '38
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Knirps 38 - Wega, Württembergische Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 330 x 260 x 150 mm / 13 x 10.2 x 5.9 inch
- Notes
-
Wega Zweireis-Dreiröhren-Allnetz-Koffer Model Knirps 38.
Stromverbrauch ca. 30 Watt
- Net weight (2.2 lb = 1 kg)
- 4.8 kg / 10 lb 9.2 oz (10.573 lb)
- Price in first year of sale
- 149.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
