L354

L354; Wega, (ID = 1315645) Speaker-P
L354; Wega, (ID = 2165576) Speaker-P L354; Wega, (ID = 2165575) Speaker-P
L354; Wega, (ID = 2165577) Speaker-P L354; Wega, (ID = 2236950) Speaker-P
Use red slider bar for more.
L354; Wega, (ID = 2165576) Speaker-P
Wega,: L354 [Speaker-P] ID = 2165576 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model L354, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1978 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: L354 - Wega, Württembergische Radio-
Material Wooden case
Dimensions (WHD) 235 x 400 x 175 mm / 9.3 x 15.7 x 6.9 inch

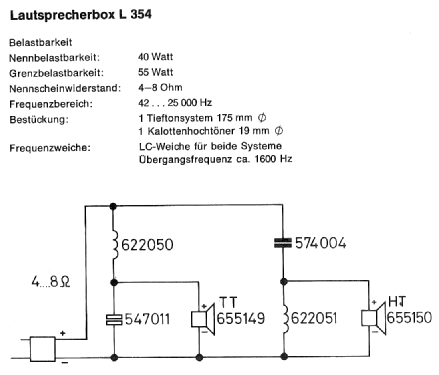

Notes 2-Weg-Box mit 40 Watt Sinus an 4 Ohm. Übertragungsbereich 42-25000Hz. Bestückung: 1 Tieftöner 175mm, 1 Kalotten-Hochtonsystem 19mm, Frequenzweiche (Trennung bei 1600Hz). Gehäuse: resonanzfreies, hochverdichtetes Holzgehäuse. Farben: Nussbaum-Furnier, Stahlblau, Schwarz. Grill Anthrazit.

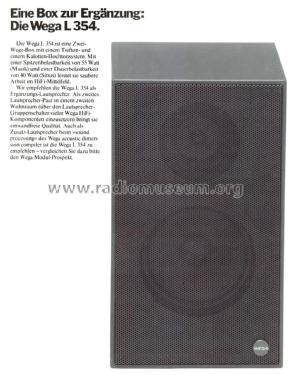

Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
