Lab Zero main amplifier

Lab Zero main amplifier ; Wega, (ID = 2072745) Ampl/Mixer Lab Zero main amplifier ; Wega, (ID = 2072746) Ampl/Mixer

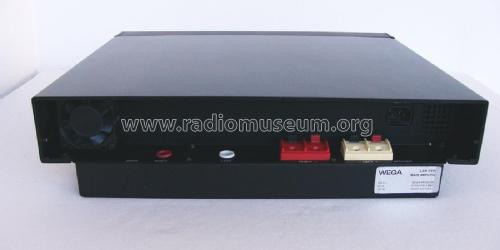

Lab Zero main amplifier ; Wega, (ID = 2072747) Ampl/Mixer Lab Zero main amplifier ; Wega, (ID = 2073229) Ampl/Mixer
Lab Zero main amplifier ; Wega, (ID = 2073230) Ampl/Mixer Lab Zero main amplifier ; Wega, (ID = 2073231) Ampl/Mixer
Use red slider bar for more.
Lab Zero main amplifier ; Wega, (ID = 2072745) Ampl/Mixer
Wega,: Lab Zero main amplifier [Ampl/Mixer] ID = 2072745 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lab Zero main amplifier, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1978 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 400 W (unknown quality)
from Radiomuseum.org Model: Lab Zero main amplifier - Wega, Württembergische Radio-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 112 x 395 mm / 17.7 x 4.4 x 15.6 inch
Notes

Endstufe der Lab Zero-Serie von Wega. Technisch basierend auf dem Sony TA-N88.
Ausgangsleistung 2 x 200 W an 8 Ω.

Mentioned in - - Manufacturers Literature

Model page created by Gerhard Wickern. See "Data change" for further contributors.
