Lautsprecher-Box LB-3513 L

Lautsprecher-Box LB-3513 L; Wega, (ID = 2491057) Speaker-P

Lautsprecher-Box LB-3513 L; Wega, (ID = 2491058) Speaker-P
Lautsprecher-Box LB-3513 L; Wega, (ID = 1038989) Speaker-P Lautsprecher-Box LB-3513 L; Wega, (ID = 1038990) Speaker-P
Lautsprecher-Box LB-3513 L; Wega, (ID = 1038991) Speaker-P Lautsprecher-Box LB-3513 L; Wega, (ID = 1188545) Speaker-P
Lautsprecher-Box LB-3513 L; Wega, (ID = 1188546) Speaker-P Lautsprecher-Box LB-3513 L; Wega, (ID = 1188547) Speaker-P
Lautsprecher-Box LB-3513 L; Wega, (ID = 1188548) Speaker-P Lautsprecher-Box LB-3513 L; Wega, (ID = 1188549) Speaker-P
Lautsprecher-Box LB-3513 L; Wega, (ID = 1520903) Speaker-P Lautsprecher-Box LB-3513 L; Wega, (ID = 1520904) Speaker-P
Use red slider bar for more.
Lautsprecher-Box LB-3513 L; Wega, (ID = 1038989) Speaker-P
Wega,: Lautsprecher-Box LB-3513 L [Speaker-P] ID = 1038989 933x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher-Box LB-3513 L, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1971 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Lautsprecher-Box LB-3513 L - Wega, Württembergische Radio-
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 250 x 250 mm / 19.7 x 9.8 x 9.8 inch

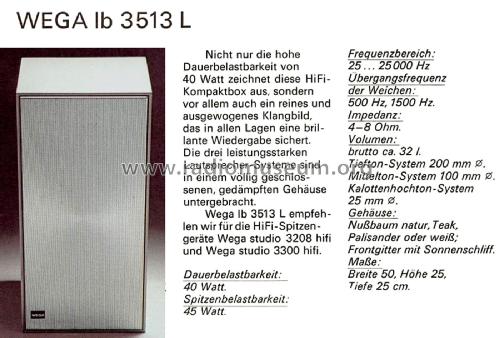

Notes Dauerbelastbarkeit: 40 Watt, Spitzenbelastbarkeit: 45 Watt, Frequenzbereich: 25...25000 Hz.
Übergangsfrequenz der Weichen: 500 Hz, 1500 Hz, Impedanz: 4-8 Ohm, Volumen: ca. 32 Liter, Tiefton-System, Mittelton-System, Kalottenhochton-System.
Gehäuse: Nussbaum natur, Teak, Palisander oder weiss, Frontgitter mit Sonnenschliff.
Source of data - - Data from my own collection
Mentioned in - - Manufacturers Literature

Model page created by Achim Eisenhuth. See "Data change" for further contributors.
