For model lb3516, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1974 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: lb3516 - Wega, Württembergische Radio-
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 450 x 290 x 100 mm / 17.7 x 11.4 x 3.9 inch
Notes Wega, 2-Wege-HiFi-Box, lb 3516, mit 25 Watt Sinus, Impedanz 4-8 Ohm,
Übertragungsbereich: 40-20000Hz, Volumen 13,6 Liter.
Bestückung: 1 Tieftöner 170mm und 1 Kalotten-Hochtöner 25mm.
Frequenzweiche: (Übergang bei 2200Hz).
Regal- oder Wandlautsprecher im Holzgehäuse: Nussbaum, Natur, Weiss oder Metallic.
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)

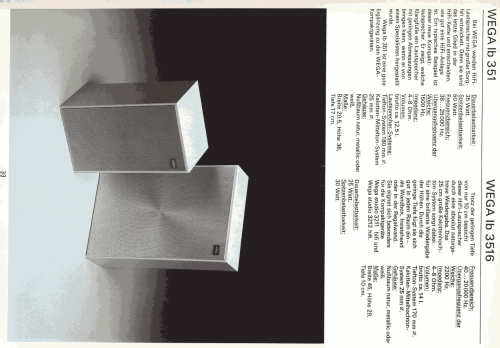

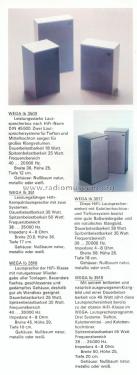

Source of data -- Original prospect or advert
