For model lb3517, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach:

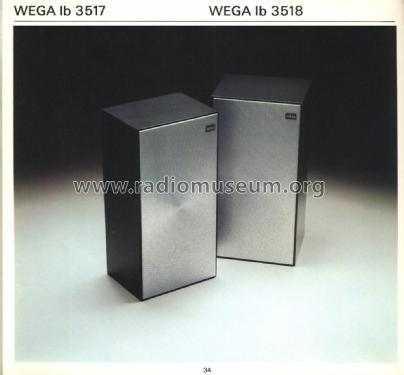

Wega Katalog 1973 (Bild bearbeitet)

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1974 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: lb3517 - Wega, Württembergische Radio-
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 500 x 250 x 180 mm / 19.7 x 9.8 x 7.1 inch
Notes 2-Wege-HiFi-Box mit 30 Watt Sinus, Impedanz 4-8 Ohm, Übertragungsbereich: 30-20000Hz, Volumen 22 Liter. Bestückung: 1 Tieftöner 200mm und 1 Kalotten-Hochtöner 25mm. Frequenzweiche: (Übergang bei 2000Hz). Regal- oder Wandlautsprecher im Holzgehäuse: Nussbaum, Natur, Weiss oder Metallic.
Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
