- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1976
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 142131
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Original prospekt in 1976.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

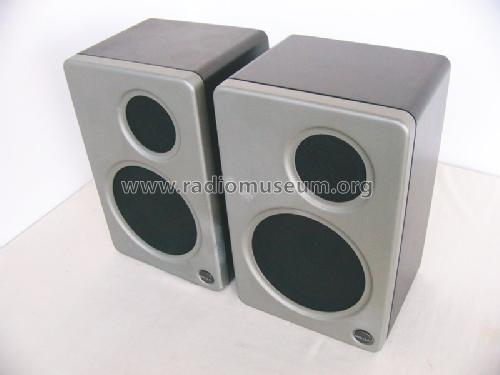

- Model: LB 3540 - Wega, Württembergische Radio-
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 205 x 320 x 165 mm / 8.1 x 12.6 x 6.5 inch
- Notes
- 2-Wege-HiFi-Box mit einer Belastbarkeit von 25 W Sinus; Impedanz 4-8 Ohm, Übertragungsbereich: 45-25000 Hz.
Bestückung: 1 Tieftöner 260 mm Ø und 1 Kalotten-Hochtöner 19 mm Ø. Frequenzweiche: Übergang bei 2000 Hz.
Regal- oder Wandlautsprecher im Holzgehäuse (resonanzfrei, hochverdichtet); Anthrazit oder Metallic.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
